mbl C11

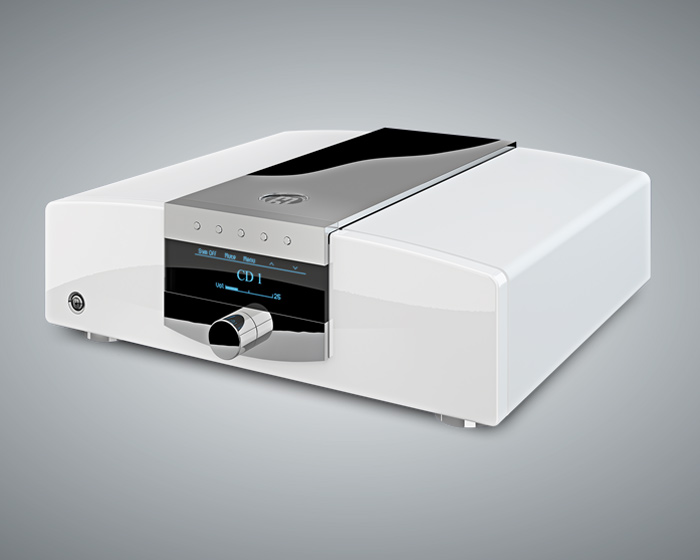

Preamplifier mbl C11

Blurring the line between technology and art is the MBL Corona C11 Pre Amplifier.

The mission was to achieve perfect symbiosis – an ideal fusion of high end sound with an innovative design concept. MBL’s teams of developers and designers worked hand in hand in engineering the concept and have broken fresh ground. The outcome is now a new range of superb high quality high end audio - the MBL Corona Line.

A system's musical potential can only be fully realised with the assistance of a high-grade preamplifier. MBL have invested all their expertise into the development of the Corona Line preamplifier, holding it to MBL's high-end standard. Unimpeded by any constraints, MBL have created a control centre adept with any kind of music, down to the very finest detail or each subtle change of mood or timing. To achieve this, MBL designed the Corona Line preamplifier around the best available potentiometers for acoustically perfect tracking and volume control. Their sophisticated power supply system would enhance any preamplifier. All subassemblies are carefully isolated to prevent interference that could diminish the music's nuances. MBL's uncompromising approach to development makes for superb quality and consummate musical enjoyment.

The Corona Line hasn’t just broken the mould in design terms alone; technically speaking too this new product line sets new standards. The outer solid aluminium casing contains a second casing of reinforced steel which screens off the electronics in magnetically shielded slots with full electrical isolation of the power supplies units and transformers. The CD player features a state of the art high quality Slot drive and digital RCA and Toslink inputs as well as a native USB dock for CD audio data. A novel intelligent MBL SmartLink network enables the devices to talk to one another. This means that all associated input signals are controlled by the Pre-Amplifier or Integrated Amplifier and a simple touch of the button on a device or the remote control is all that you need to put the whole Corona system on standby. The power consumption is then under 1 VA (Green Standby). The MBL Corona Line is a fully rounded statement of our proven expertise in audio engineering and design – a consummate fusion of perfect acoustics and design. A truly alluring entry to the world of high end audio.

SPECIFICATIONS

General
Weight 15,5 kg / 34.2 lbs
Dimensions (without cables) W 45,0 cm / D 44,5 cm / H 14,5 cm
W 17.7 in / D 17.5 in / H 5.7 in
Dimensions with packaging W 59,0 cm / D 54,0 cm / H 35,5 cm
W 23.2 in / D 21.3 in / H 21.9 in
Line Voltage 230 Vac / 50 Hz or 115 Vac / 50/60 Hz
(single voltage, factory setting depending on country)
Power consumption
 in stand by < 0.5 VA
 in idle < 20 VA
 Maximum < 20 VA

Connections
Inputs
RCA unbalanced
2 x MBL CD1 / CD2
2 x Tuner AUX1 / AUX2
1 x Processor By-Pass
XLR balanced (unity gain)
1 x Symmetrical
Options
1 x optional 2nd Symmetrical In (XLR) or
1 x optional Phono Module (RCA

Outputs
RCA unbalanced 2 x Variable Out , 1 x Fixed Record Out
XLR balanced (double gain) 1 x Variable Out
Other Ground Terminal , 2 x MBL SmartLink

Output Level / Maximum Output
Variable unbalanced RCA Outputs … 5 V @ 2 V Input, max 8 V (According to Volume Setting)
Variable balanced XLR Output 0 … 10 V @ 2 V Input, max 16 V (According to Volume Setting)
Fixed Record Output 0 2 V @ 2 V Input, max. 8 V
Nominal / Maximum Input Level (All Inputs except Phono)  2 V / 8V
Absolute Polarity In-Phase (RCA / XLR Pin2)
Frequency Range (All Inputs and Outputs except Phono) : DC - > 200 kHz

Output Impedance
All RCA Outputs : 100 Ohm
 XLR Output  : 200 Ohm

Input Impedance
 CD and Processor By-Pass Inputs :  ≥ 5 kOhm
 AUX Inputs :  50 kOhm
 XLR Input : 10 kOhm
Signal to Noise Ratio (All Inputs and Outputs except Phono)
> 110 dB (A) @ 2 V Input, Volume set to 0 dBr / unity gain
Channel Separation (All Inputs and Outputs except Phono)
> 100 dB @ 1 kHz
Total Harmonic Distortion + Noise (All Inputs and Outputs except Phono)
< 0.001 % @ 2V Input / 1kHz, Volume set to 0 dBr / unity gain
