mbl Radialstrahler 101 E MKII
Radialstrahler mbl 101 E MKII
The technological tour de force that has continually redefined audio playback for over 30 years. MK II’s are the refined version of the earlier 101e Radialstrahler which garnered worldwide recognition as a truly great and classic loudspeaker. A speaker that is equally competent at reproducing the delicacy of a string quartet and the bone crushing transient dynamics of a rock performance. Combining performance, looks and luxury, the 101e - MKII does not produce sound as a conventional forward-firing point source, but as genuine 360-degree-radiating omnidirectional spheres. “Radialstrahl” means to “emit sound in a circular signal.”
The technological tour de force that has continually redefined audio playback for over 30 years. MK II’s are the refined version of the earlier 101e Radialstrahler which garnered worldwide recognition as a truly great and classic loudspeaker. A speaker that is equally competent at reproducing the delicacy of a string quartet and the bone crushing transient dynamics of a rock performance. Combining performance, looks and luxury, the 101e - MKII does not produce sound as a conventional forward-firing point source, but as genuine 360-degree-radiating omnidirectional spheres. “Radialstrahl” means to “emit sound in a circular signal.”
The tweeter, midrange, and bass modules are each pulsating spheres, while a custom-designed subwoofer module is housed below. Each hand-finished 101e - MKII is a thing to behold — a sculptural device that benefits from classic German attention to detail, and obsession with perfection.
101 - MKII - Improvements
- New Base Drivers - offering more control
- Improved Upper Midrange
- New subwoofer cabinet design, aquistic center more improved bottom end
- New Crossover Technology
- Retuned front to rear signal
- New ring design surrounding the bass ports
- Reduced speaker height, improved listening
- New 101 -MKII grill design

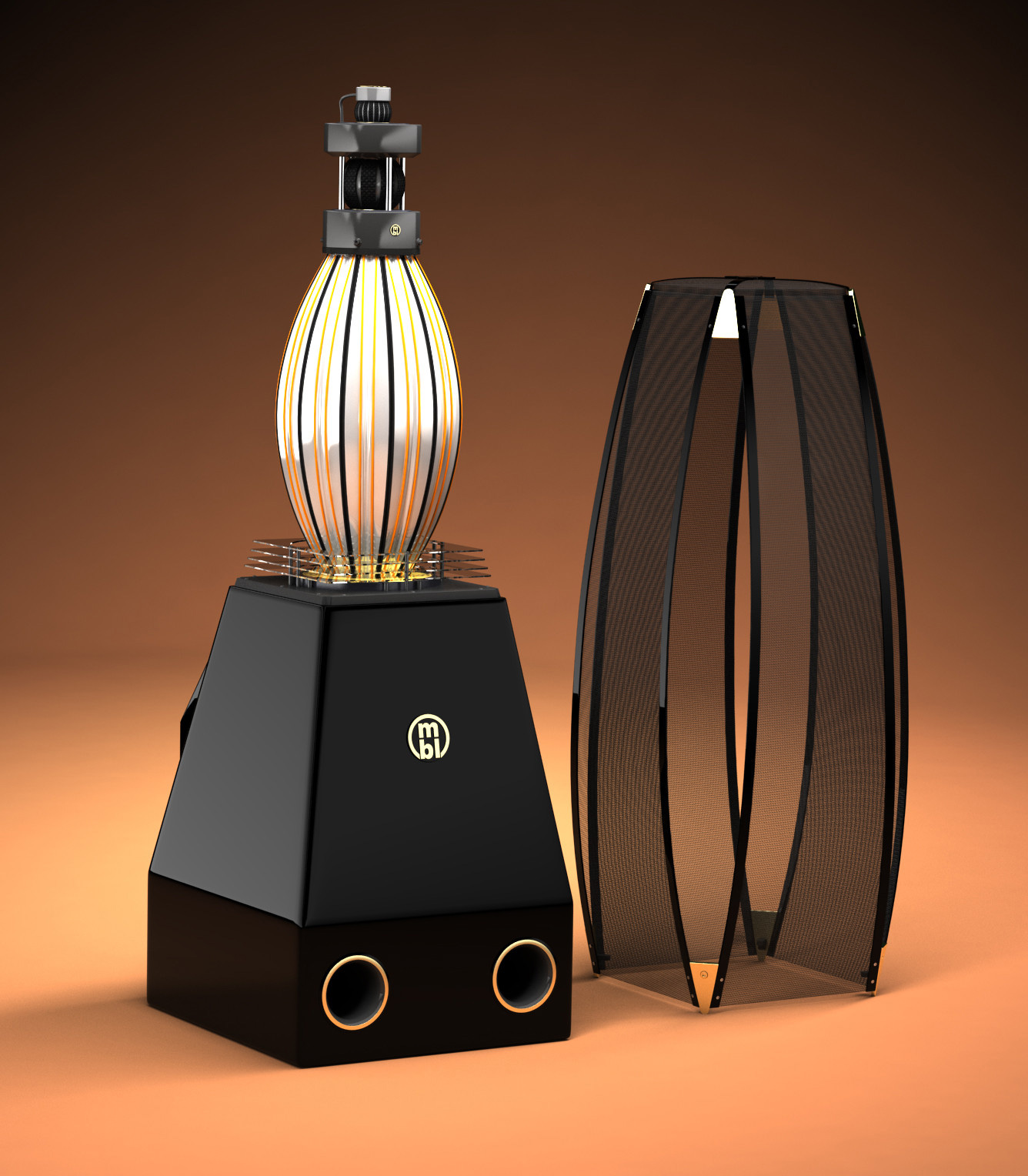

The Radialstrahler concept includes a circular vertical arrangement of lamellas around an axis for each frequency range (tweeter, midrange driver and subwoofer). On the upper side, these lamellas are firmly glued in a thrust bearing and on the lower side, they are connected to a moving coil. If a pulse of music is now transmitted from the amplifier to the speaker, these slightly bent lamellas (therefore the Radialstrahler is also called “Biegeschwinger”) are oscillated – they radiate sound waves, in this case music. The result is a sound of unusual acoustic space and realism that is absolutely free from coloring, that is neutral and homogenous.
In order to create a solid basis for the homogenous realism of the three Radialstrahler systems, we integrated a subwoofer into the mbl 101e - MKII that has also been carefully developed and that substantiates the precise play in the subwoofer range. Like the tweeter, the midrange driver and the woofer the subwoofer is submitted to the objective of the overall system as a whole: the natural sound. Accordingly, it is perfectly integrated in this 4-way speaker system which is unique – not only with regard to technology.
hearing it for the first or the hundredth time, the 101e- MKII is bound to raise goose bumps, to increase the pulse. With the 101 music doesn't seem to come from the speakers, but is simply there, in all its majesty and beauty.
The mbl 101e -MKII simply lights up with natural elegance: It is modern and timeless in one, it differs in every respect from conventional speakers, but it is discreetly beautiful. It is a harmonic complement to every stylish living space without making a negative impression as musical furniture. specially as the Radialstrahler really sounds brilliantly everywhere). But whoever regards it deliberately – and which visitor would not like to do that? – will be bewitched by its appearance: even when looking at it, the manually selected materials make you feel like touching, feeling the brilliant workmanship.
SPECIFICATIONS
System: 4-way
Frequency range: 24 Hz to 40,000Hz
Impedance 4 Ohm
SPL sound pressure level: 82 dB/W/m (2.83V/ 2pi)
linear max:. 106 dB
Crossover frequencies: 105 Hz, 600 Hz, 3500 Hz
Linkwitz-Riley: 4th order
Acoustic center: 119 cm
Continuous power: 320 W / 500 W
Peak power: 2200 W
Subwoofer: 300 mm, 12“ Alu
Woofer Radial: TT100 (MBL)
Midrange high Radial: MT50, CFK (MBL)
Tweeter Radial: HT37/E, CFK (MBL)
Dimensions (WxHxD): 450 x 1230 x 500 mm
H (incl. cover) = 1550 mm
116 x 48 (61) x 18“
Weight: 80 kg, 176 lbs
